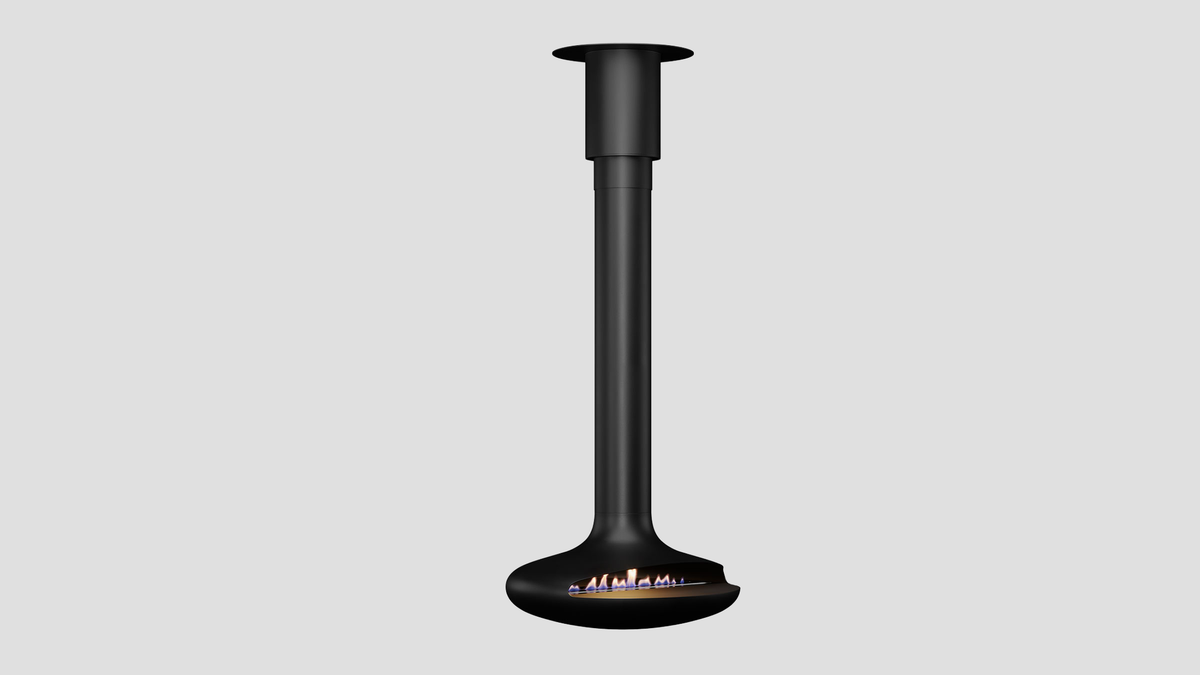

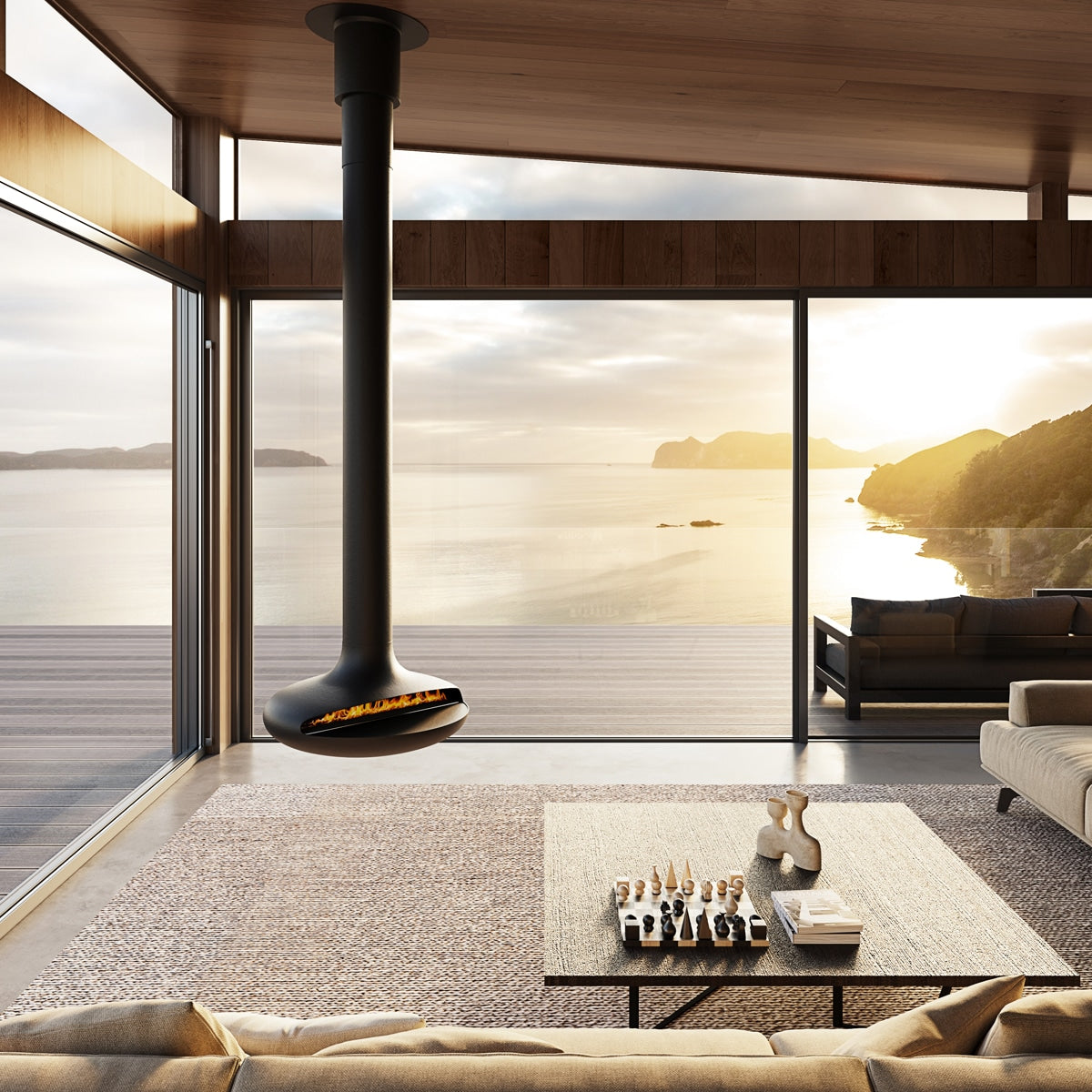

Naked Flame Curve 90 suspended fireplace
We will add you to the Naked Flame list. Unsubscribe any time.
Not sure which one? Call 0800 468 836 or see them in a room.
DeliveryWorldwide
We deliver worldwide. Delivery requirements vary by model, configuration and destination, so we quote freight to your door and confirm the details before your order is placed.
WarrantyBy model
Warranty cover depends on the model, fuel configuration and manufacturer. See the warranty page or ask us for the terms on the fire you are considering.
InstallationBy fuel
Bioethanol and electric versions need no chimney; every Naked Flame model still hangs on its own steel flue. Gas and wood versions vent through the roof and must be installed by a qualified installer to the building rules where you live. We will confirm what your fire needs before you order.
- Shipped NZ and worldwide
- Secure checkout
- Help on 0800 468 836
Fuel options
Bioethanol. An XL700 burner with a 7 L tank gives 4 kW and burns 9 to 12 hours a fill. No chimney or gas line is needed; the fire still hangs on its steel flue. The room must be at least 90 m3.
Electric. An electric flame insert, powered from a power point in the ceiling space, with the lead running inside the flue. No chimney or gas line is needed.
Gas. Fitted at the factory and installed to AS/NZS 5601.1 by a licensed gasfitter, with the flue venting through the roof. Gas versions do not rotate.
Wood. The wood version is an open-fronted fire, installed as an untested appliance under AS/NZS 2918 with building consent. Open-fronted wood fires are not allowed in many New Zealand urban areas, so check with your council before ordering.
Ceiling and installation
- Choose a flat or pitched ceiling fitting when you order.
- The suspension bracket fixes into the ceiling framing, and the structure must hold 350 kg to allow for swing.
- The flue is 219 mm in diameter, weighs 16 kg a metre and is cut to suit your ceiling height.
- Keep at least 150 mm clear all the way round, and the base of the fire at least 500 mm above the floor.
- Installation is by a qualified installer for the fuel you choose, following the install guide and local building rules.
Finishes
- Black powdercoat: a matte black coat over steel.
- Corten steel: weathering steel with a rust-orange patina.
- Brushed stainless steel: a satin finish with a fine grain.
- Polished stainless steel: a mirror finish that reflects the room.
Questions we actually get asked
Not here? Email sales@nakedflame.nz and someone who knows the range will answer.
How much heat does it give off?
On bioethanol the Curve 90 gives 4 kW from a 7 L tank, for a room of 90 m3 or more. Call us on 0800 468 836 for gas, wood and electric figures for your room.
Will it fit my ceiling?
Choose a flat or pitched fitting when you order. The ceiling structure must hold 350 kg, and the base of the fire should sit at least 500 mm above the floor. Send us your ceiling height and pitch and we will confirm the fit.
Does it rotate?
Yes, 360 degrees in bioethanol, wood and electric, as long as 150 mm stays clear all the way round. Gas versions are fixed.
How long does a fill of bioethanol last?
9 to 12 hours from the 7 L tank, depending on how high you run the flame.
Can I have the wood version in New Zealand?
The wood version is an open-fronted fire, installed as an untested appliance under AS/NZS 2918 with building consent. Open-fronted wood fires are not allowed in many New Zealand urban areas, so check with your council before ordering.
Do you deliver to my country?
We deliver worldwide. We quote freight to your door and confirm the details before your order is placed.
Four fuels. One form.
Bioethanol, gas, wood or electric. Choose the fuel that suits your home, and the fire looks the same.
Talk to the team.
Tell us about the room, the ceiling and where you are in the world, and we will tell you which fire fits.
