Orbit Supended Fire

The Orbit Suspended Fire is a bold, sculptural suspended fireplace. With its wide firebox and balanced curved silhouette, the Orbit creates a dramatic floating focal point in modern homes, architectural builds and open-plan living spaces.

Designed where form meets function, it delivers powerful heat wrapped in refined contemporary design.

Available Finishes

The Orbit is available in:

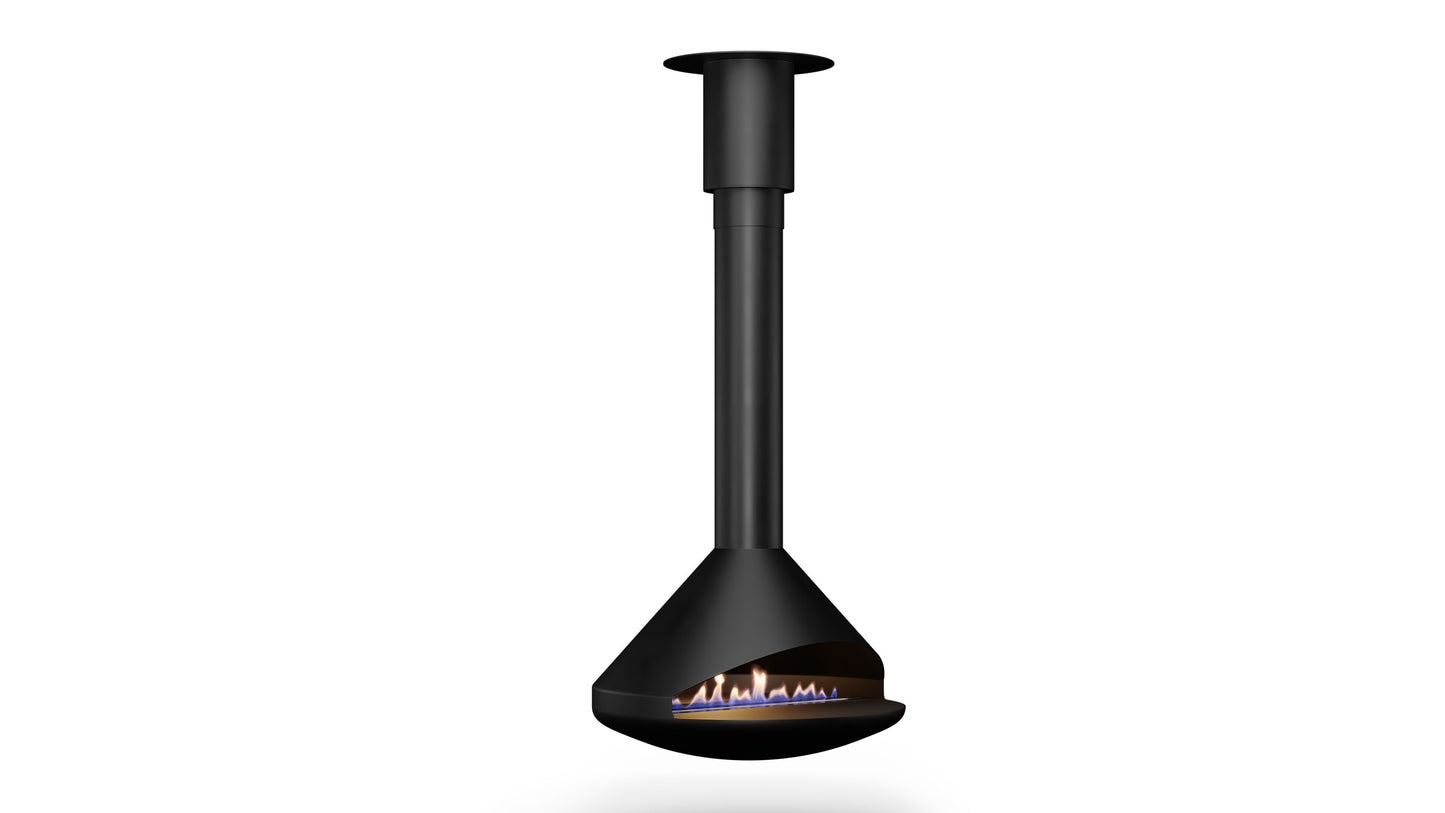

• Black Powder Coat

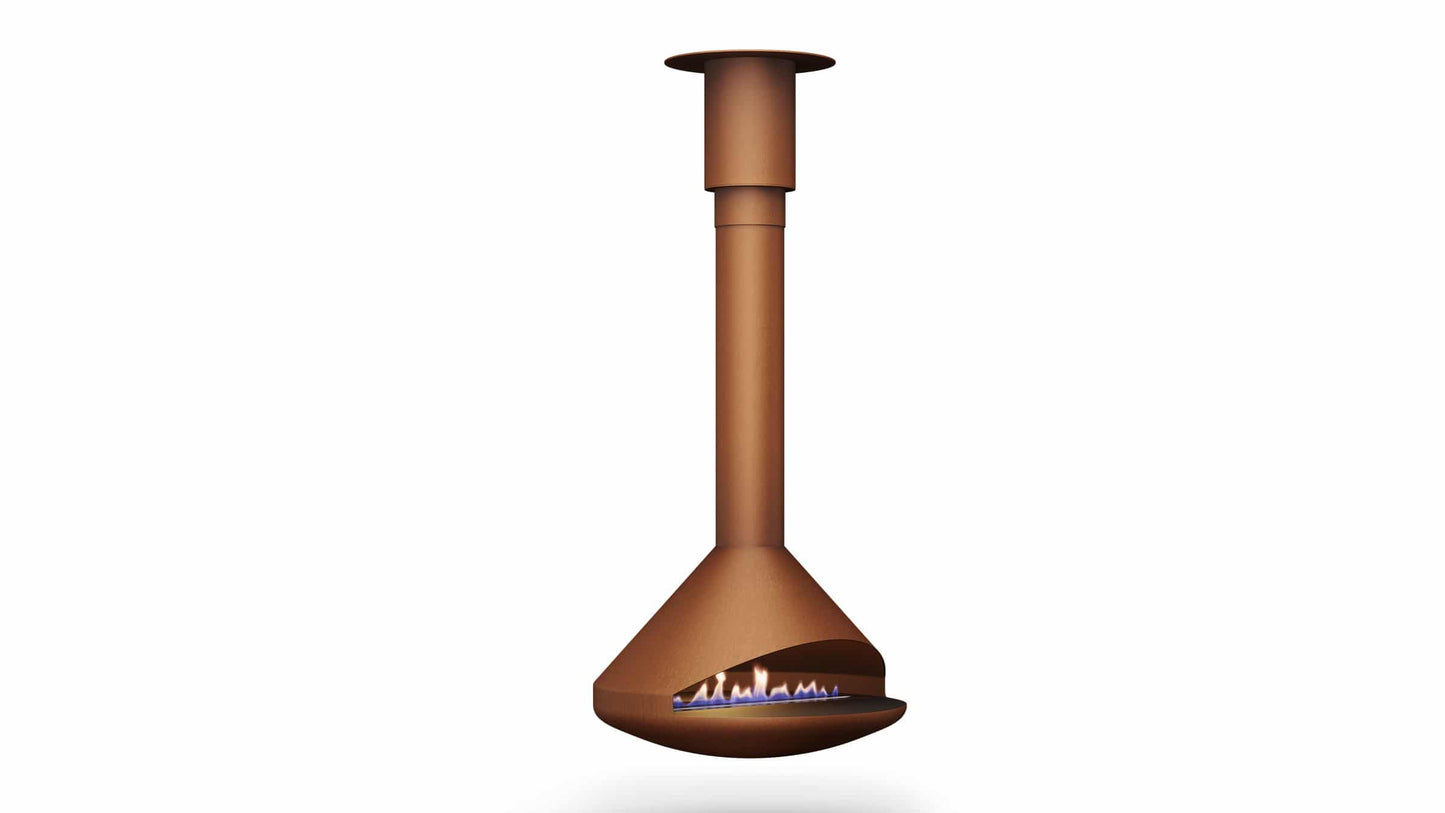

• Corten Steel

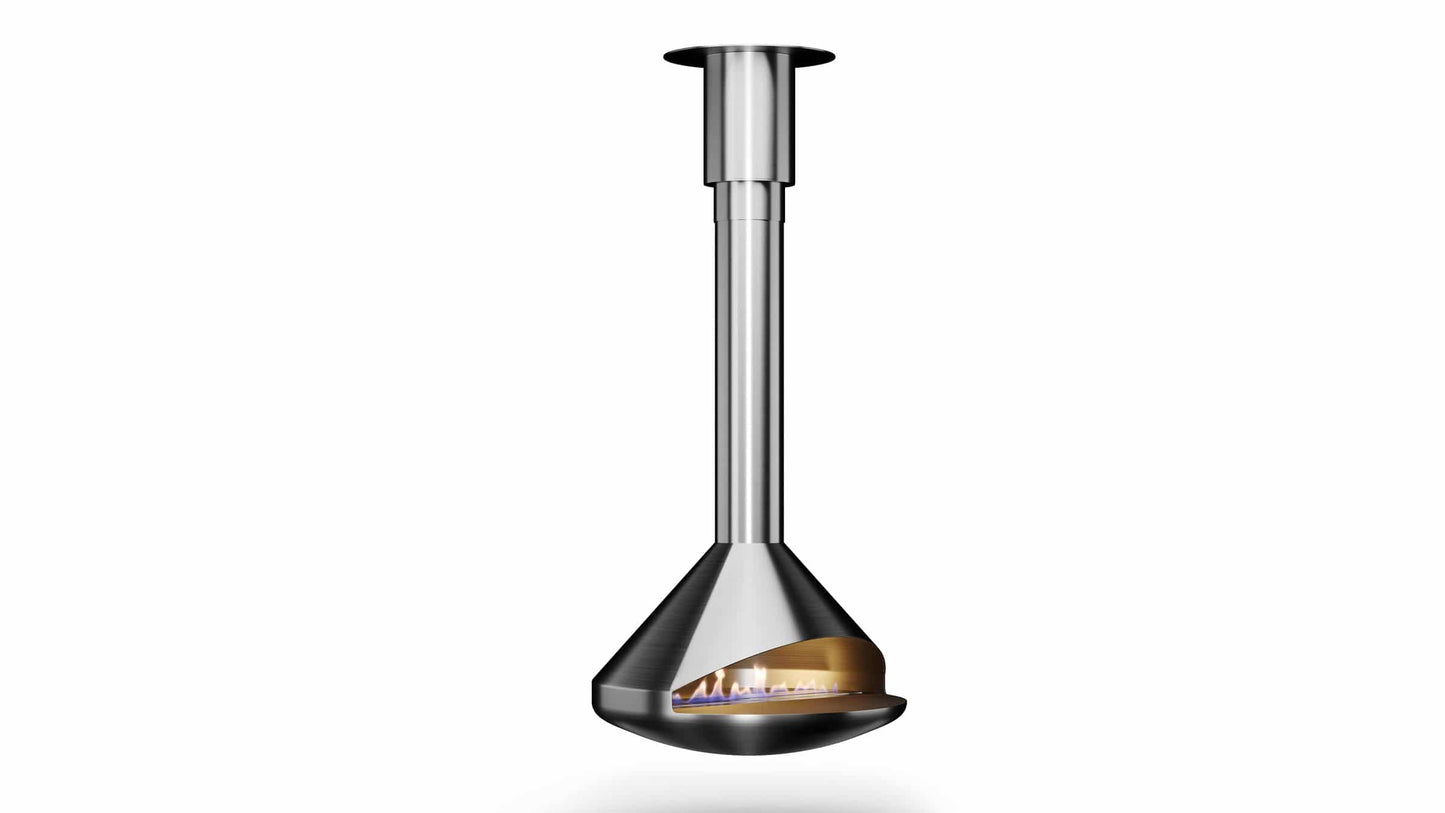

• Brushed Stainless Steel
• Polished Stainless Steel

From industrial warmth to refined stainless elegance, Orbit adapts beautifully to contemporary, minimalist and architectural interiors.

360° Rotation System

The Orbit features a 360-degree rotation system, allowing you to direct heat throughout your living space.

Prefer a fixed installation? The firebox can be locked in position during installation.

Fuel Options

Available in four fuel configurations:

Bioethanol (XL700 Burner)

• Heat Output: 4 kW/h
• Fuel Capacity: 7 Litres
• Fuel Consumption: 0.7L per hour
• Burn Time: Approx. 9–12 hours
• Minimum Room Size: 90 cubic metres
• Burner Material: 304 Stainless Steel

Included with biofuel option:

• Lighting rod
• Lighter

Bioethanol provides clean burning flames with no smoke, ash or soot, eliminating the need for a chimney, consent or emissions testing.

Gas (LPG or Natural Gas)

• LPG: 3.0 kPa standing pressure
• Natural Gas: 2.0 kPa standing pressure
• 24V AC power supply with 7.2V DC module

Professional installation required

Wood

Installed as an untested appliance under NZS2918 regulations.
(Check local council compliance requirements before installation.)

Electric

Requires 220–230V single-phase power supply within the ceiling cavity.

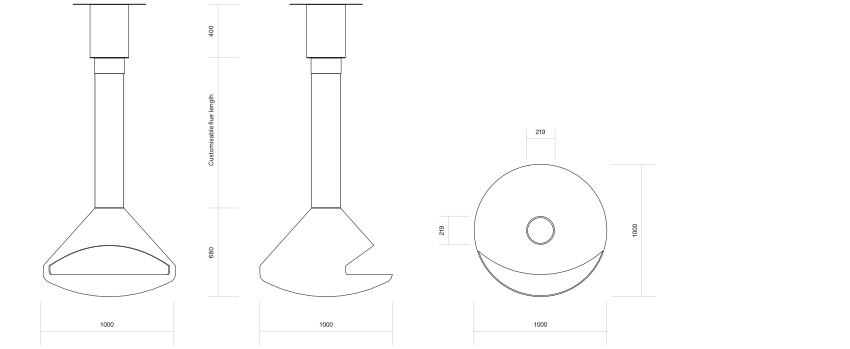

Technical Specifications

• Firebox Diameter: 1000mm
• Firebox Height: 680mm
• Firebox Weight: 78kg
• Flue Diameter: 219mm
• Flue Weight: 16kg per metre
• Suspension Bracket Weight: 20kg
• Biofuel Burner Weight: 9.2kg
• Flue Length: customisable

Ceiling structure must be engineered to support up to 350kg to allow for pendulum movement and side motion.

Minimum Clearances

• 150mm minimum clearance from combustible surfaces
• 150mm minimum clearance from non-combustible surfaces
• 150mm minimum clearance from glass
• 25mm minimum clearance between suspension bracket and combustible material within roof space

Clearances may be reduced with approved heat shielding in accordance with building code requirements.

Installation Overview

Installation must be carried out by a suitably qualified professional.

General process includes:

• Install the ceiling bracket
• Install the flue
• Attaching firebox via internal bearing assembly
• Install selected fuel system
• Test operation

Custom flue length allows flexibility for various ceiling heights.
