The Curve 90 Suspended Fire is a contemporary designer fireplace that combines bold architectural presence with practical heating performance. Designed to function as both an efficient heat source and a striking piece of art, it becomes the visual centrepiece of any modern living space


Available Finishes

The Curve 90 Family is available in:

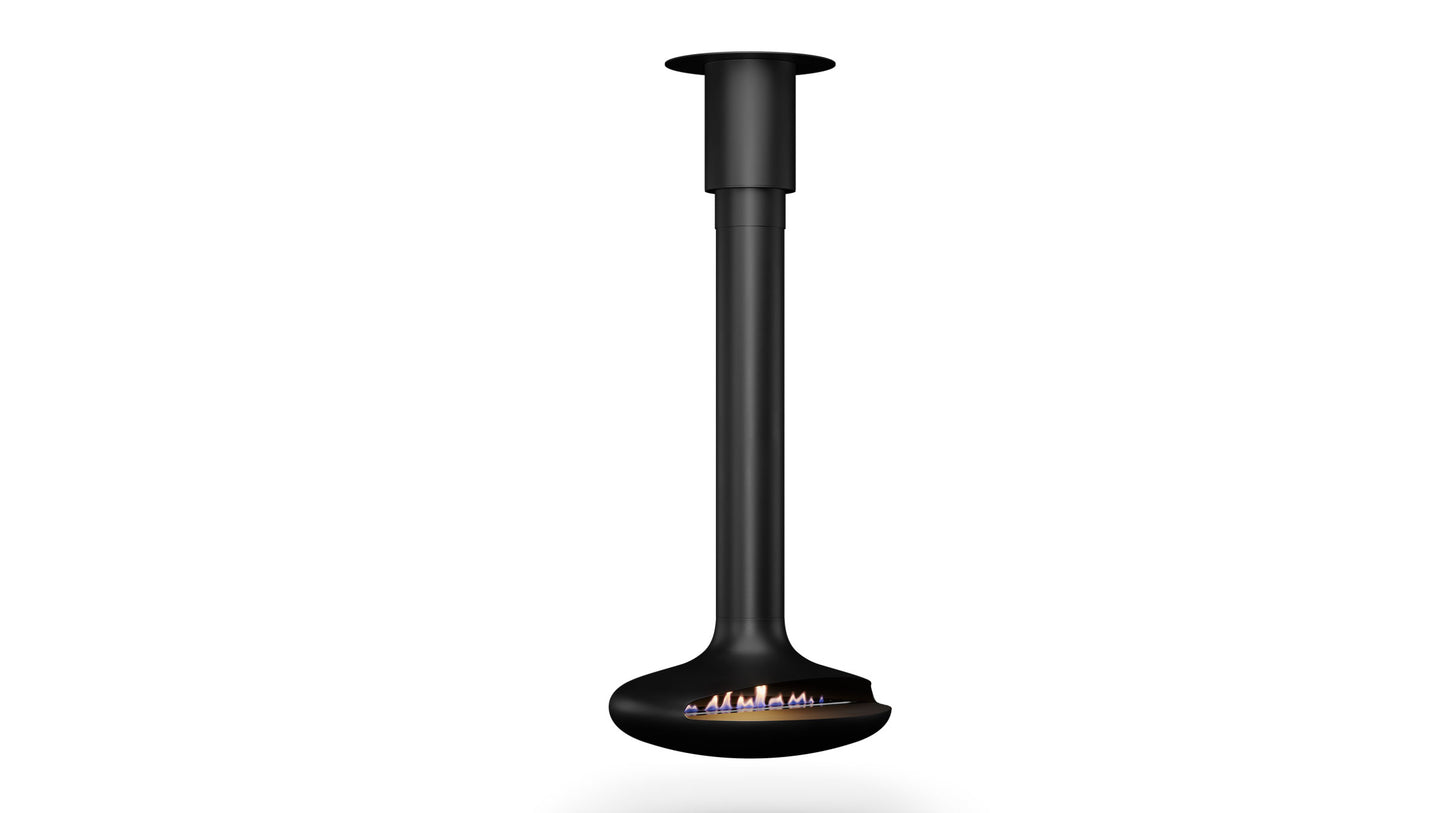

  • Black Powder Coat

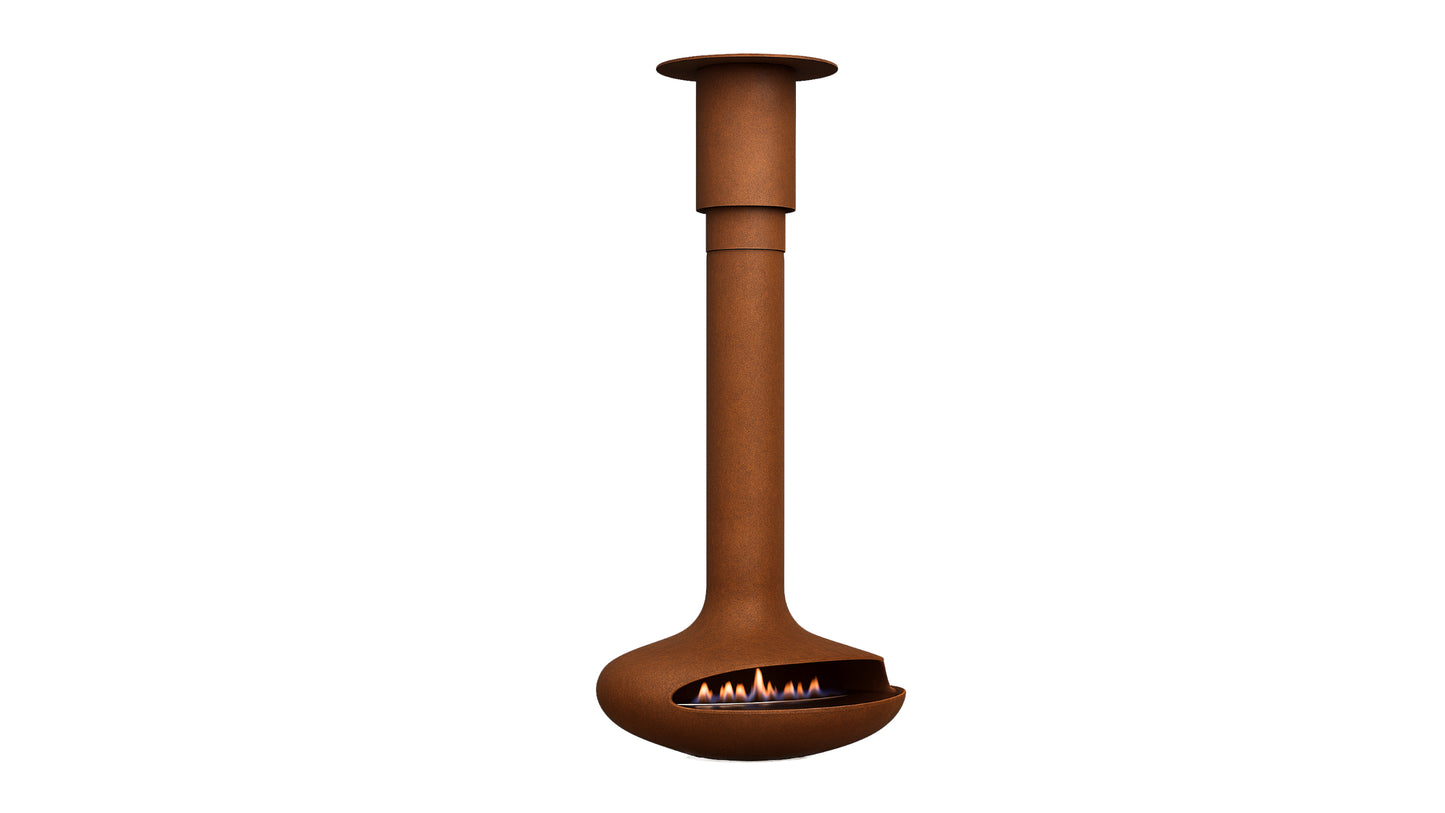

  • Corten Steel
  • Brushed Stainless Steel
  • Polished Stainless Steel

Whether you prefer industrial warmth, minimalist matte, or refined metallic elegance, there’s a finish to suit your project.


360° Rotation System

The Curve 90 features a 360-degree rotation system, allowing you to direct warmth and ambience exactly where it’s needed.

During installation, the firebox can also be locked into a fixed position if rotation is not desired.


Fuel Options

Available in four fuel configurations:

Bioethanol (XL700 Burner)

  • Heat Output: 4kW/h
  • Fuel Capacity: 7L
  • Consumption: 0.7L/hour
  • Burn Time: Approx. 9–12 hours
  • Minimum Room Size: 90 cubic metres
  • Material: 304 Stainless Steel burner

Includes:

  • Lighting rod
  • Lighter

Biofuel produces clean-burning flames with no smoke, ash or soot. No roof penetrating chimney required.




Gas (LPG or Natural Gas)

Installation to AS/NZS 5601.1:2013 standards

  • LPG: 3.0 kPa standing pressure
  • Natural Gas: 2.0 kPa standing pressure
  • 24V AC power supply with 7.2V DC module




Wood

Installed as an untested appliance under NZS2918 regulations
(Check local council regulations before installation.)




Electric

Requires 220–230V single phase power supply in ceiling cavity.

No heat produced with electric insert.

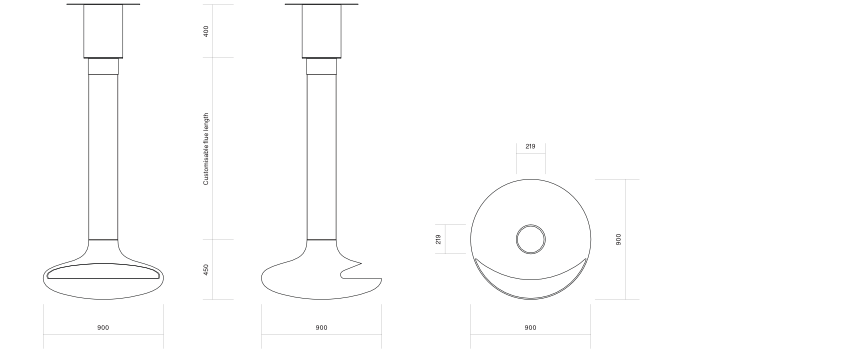

Technical Specifications

  • Firebox Diameter: 900mm
  • Firebox Weight: 58kg
  • Flue Diameter: 219mm
  • Flue Weight: 16kg per metre
  • Suspension Bracket Weight: 20kg
  • Biofuel Burner Weight: 9.2kg
  • Flue Length: customisable

Ceiling structure must be engineered to support up to 350kg to allow for pendulum movement.


Minimum Clearances

As outlined in the installation manual:

  • 150mm minimum clearance from combustible surfaces
  • 150mm minimum clearance from non-combustible surfaces
  • 150mm clearance from glass
  • 25mm clearance between suspension bracket and combustible material in roof space

Installation Overview

Professional installation is required

General process:

  • Secure structural suspension bracket within ceiling framing
  • Install flue
  • Attach firebox using bearing kit
  • Install chosen fuel system
  • Commission and test appliance

Curve 90

W90

D90

H45

2 Year Warranty
