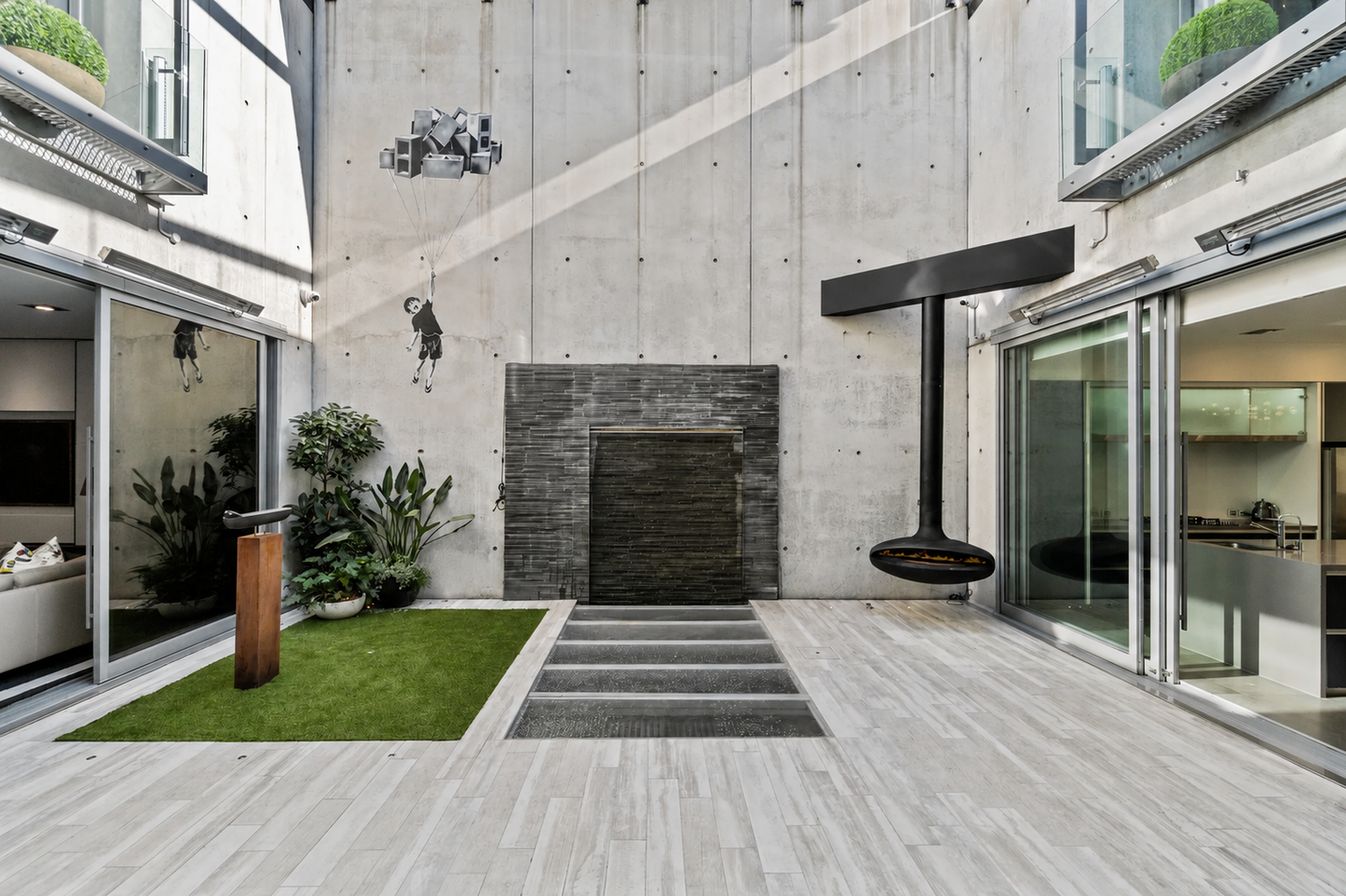

Curve-120 Supended Fire

The Curve 120 Suspended Fire is a large-scale contemporary designer fireplace created to anchor spacious interiors with warmth and presence. At 120cm wide, this sculptural hanging fireplace blends performance with artistry, delivering exceptional heat output while remaining a striking centrepiece.

Available Finishes

The Curve 120 Family is available in:

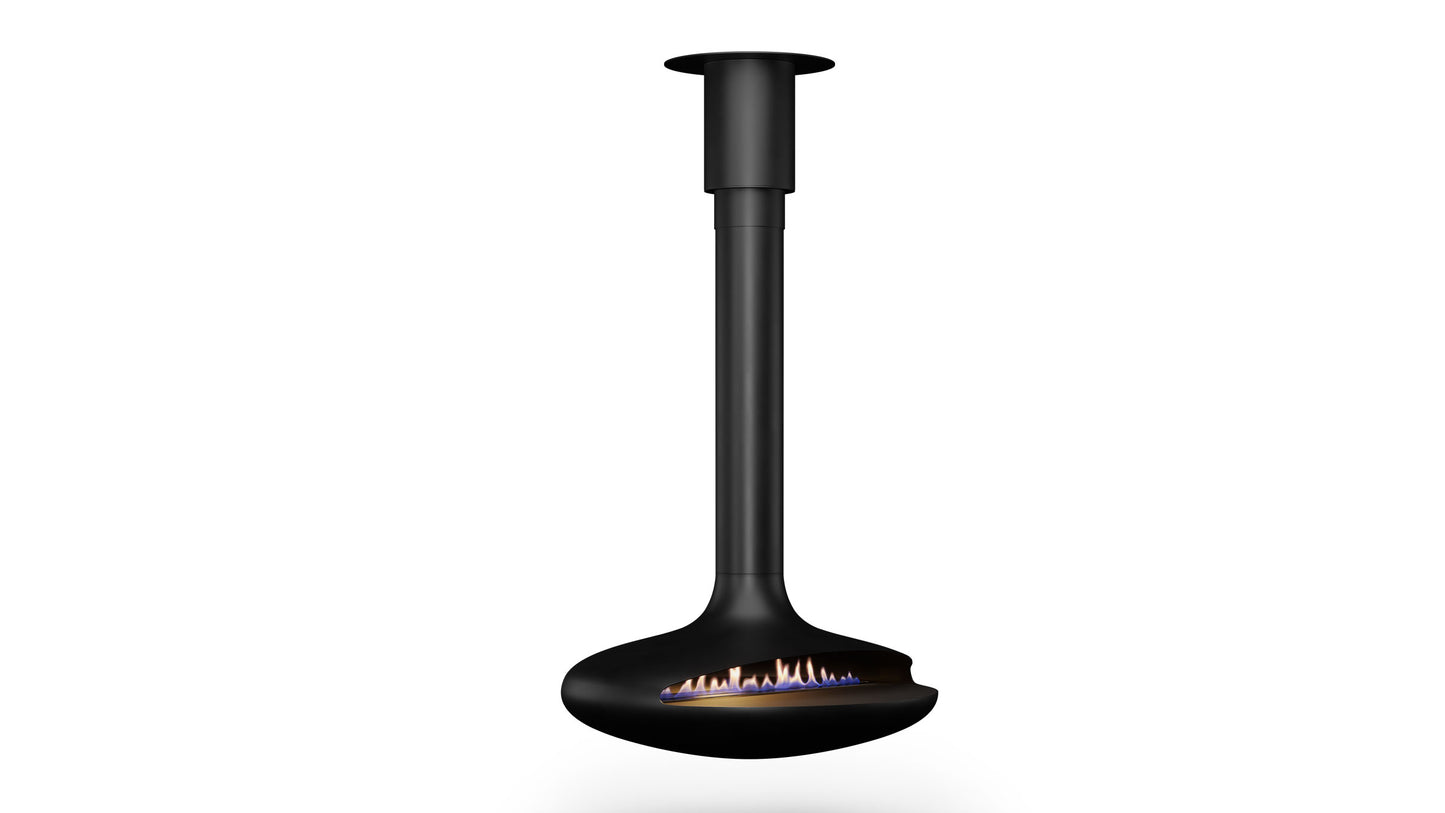

• Black Powder Coat

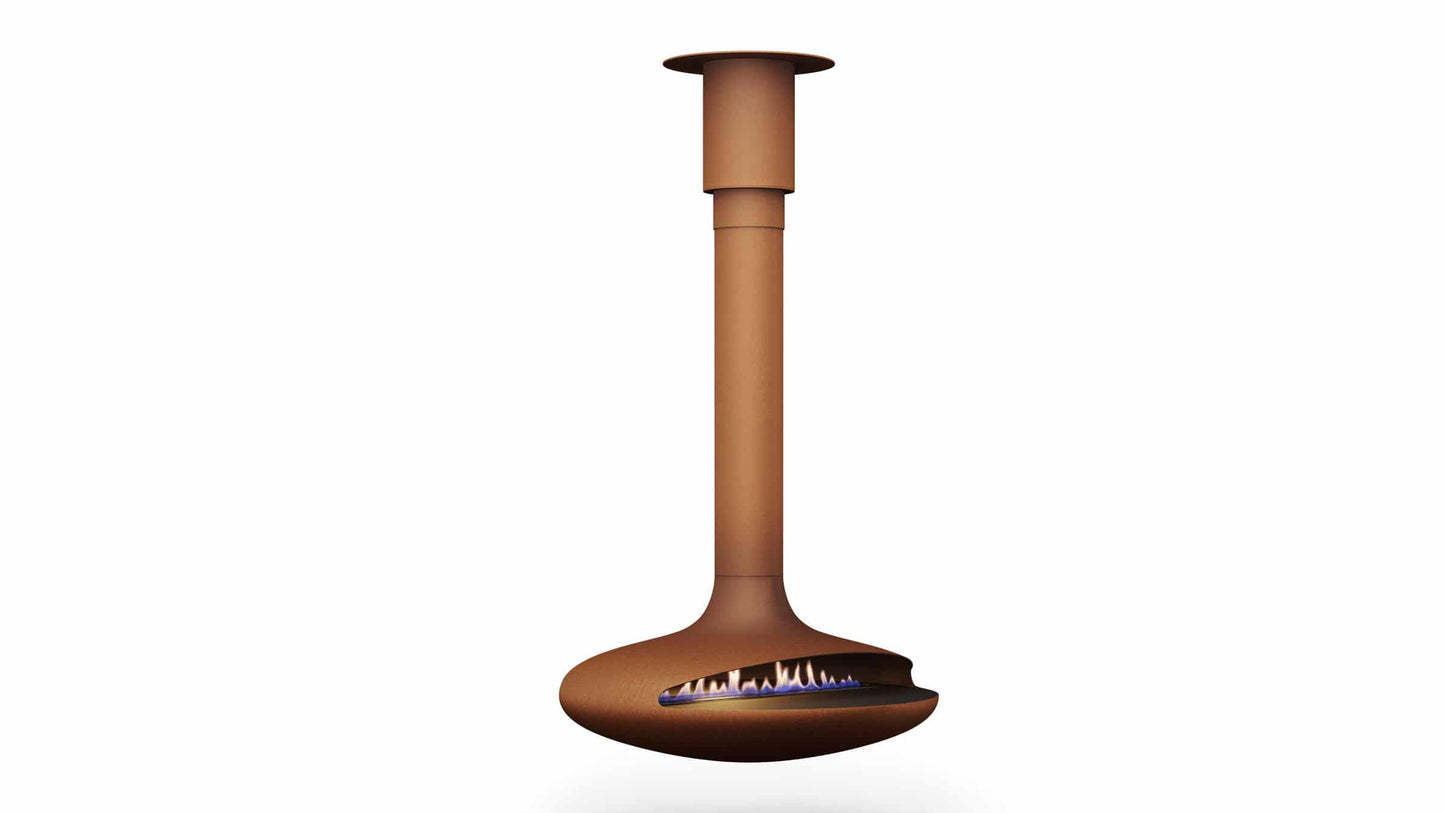

• Corten Steel

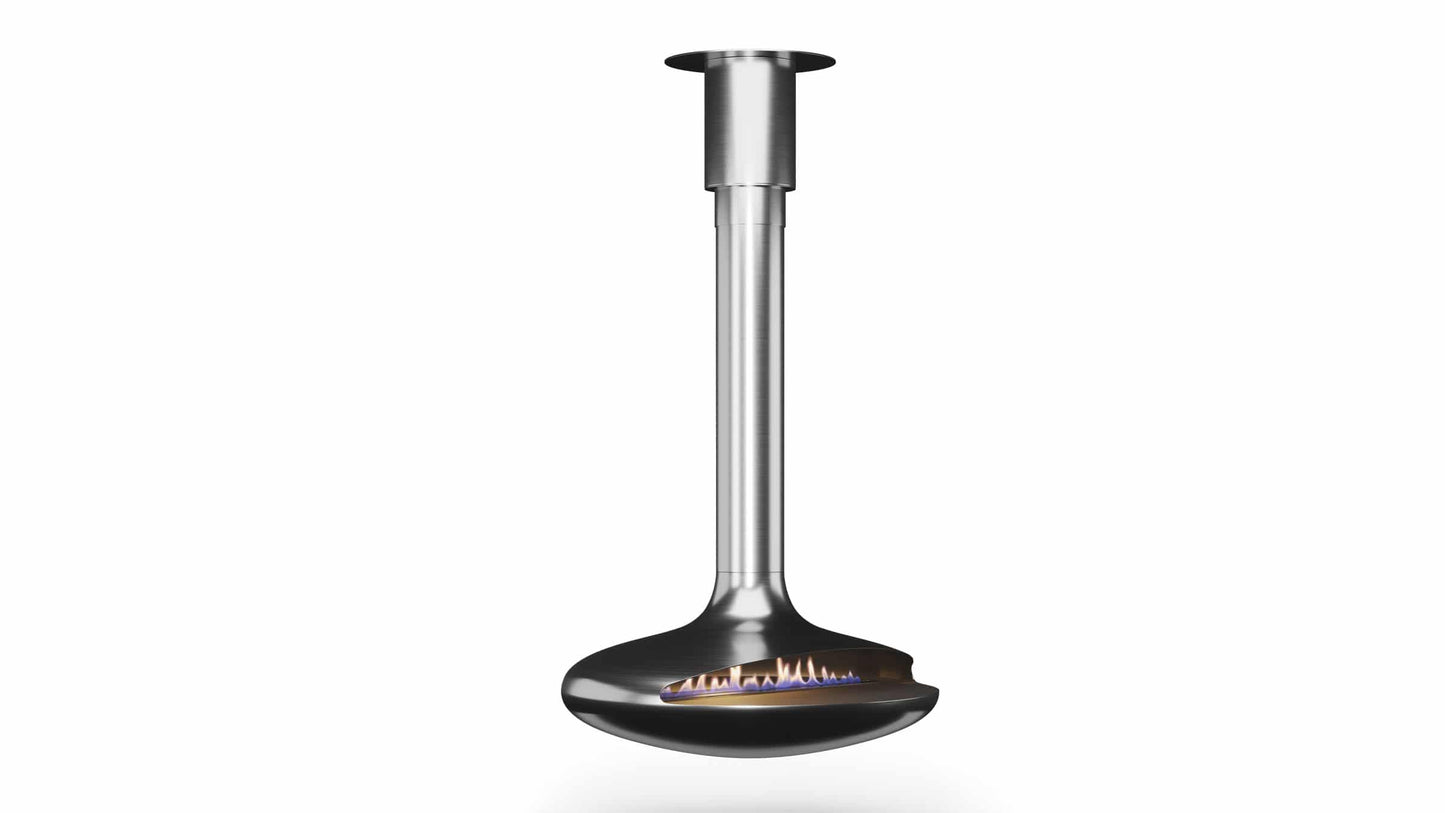

• Brushed Stainless Steel
• Polished Stainless Steel

From industrial corten tones to refined stainless elegance, each finish enhances the fire’s modern silhouette.

360° Rotation System

The Curve 120 includes a 360-degree rotation system, allowing you to direct heat and flame throughout open-plan living areas.

During installation, the firebox can also be locked into a fixed position if rotation is not required.

Fuel Options

Available in four fuel configurations:

Bioethanol (XL900 Burner)

• Heat Output: 4.4 kW/h
• Fuel Capacity: 9 Litres
• Fuel Consumption: 0.8L per hour
• Burn Time: Approx. 8–13 hours
• Minimum Room Size: 110 cubic metres
• Burner Material: 304 Stainless Steel

Included with biofuel option:

• Lighting rod
• Lighter

Bioethanol provides clean-burning flames with no smoke, ash or chimney required.

Gas (LPG or Natural Gas)

Installation must comply with AS/NZS 5601.1 standards

• LPG: 3.0 kPa standing pressure
• Natural Gas: 2.0 kPa standing pressure
• 24V AC power supply with 7.2V DC module

Professional installation required.

Wood

Installed as an untested appliance under NZS2918 regulations.
(Check local council compliance requirements before installation.)

Electric

Requires 220–230V single-phase power supply within the ceiling cavity.

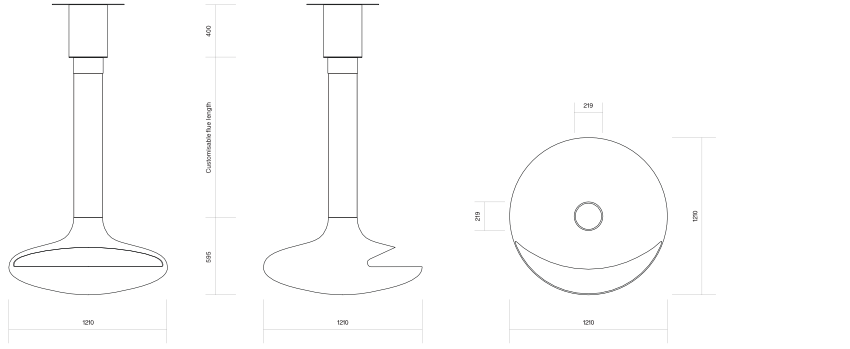

Technical Specifications

• Firebox Diameter: 120cm
• Firebox Height: 59.5cm
• Firebox Weight: 113kg
• Flue Diameter: 21.9cm
• Flue Weight: 16kg per metre
• Suspension Bracket Weight: 20kg
• Biofuel Burner Weight: 12.2kg
• Flue Length: customisable

Ceiling structure must be engineered to support up to 350kg to allow for pendulum movement and side motion.

Minimum Clearances

Due to its larger size, the Curve-120 requires:

• 200mm minimum clearance from combustible surfaces
• 200mm minimum clearance from non-combustible surfaces
• 200mm minimum clearance from glass
• 25mm clearance between suspension bracket and combustible material within roof space

Clearances may be reduced with approved heat shielding in accordance with building code requirements.

Installation Overview

Installation must be carried out by a qualified professional.

General process includes:

• Structural installation of suspension bracket within ceiling framing
• Installation of flue (custom cut to height)
• Attaching firebox via bearing assembly
• Installing selected fuel system
• Commissioning and testing appliance
